Oh woodruff key....i see

Help me ID this hose...

[youtube]http://www.youtube.com/watch?v=DGy0R-EOu3Q[/youtube]

Sent from my HTC One using Tapatalk 2

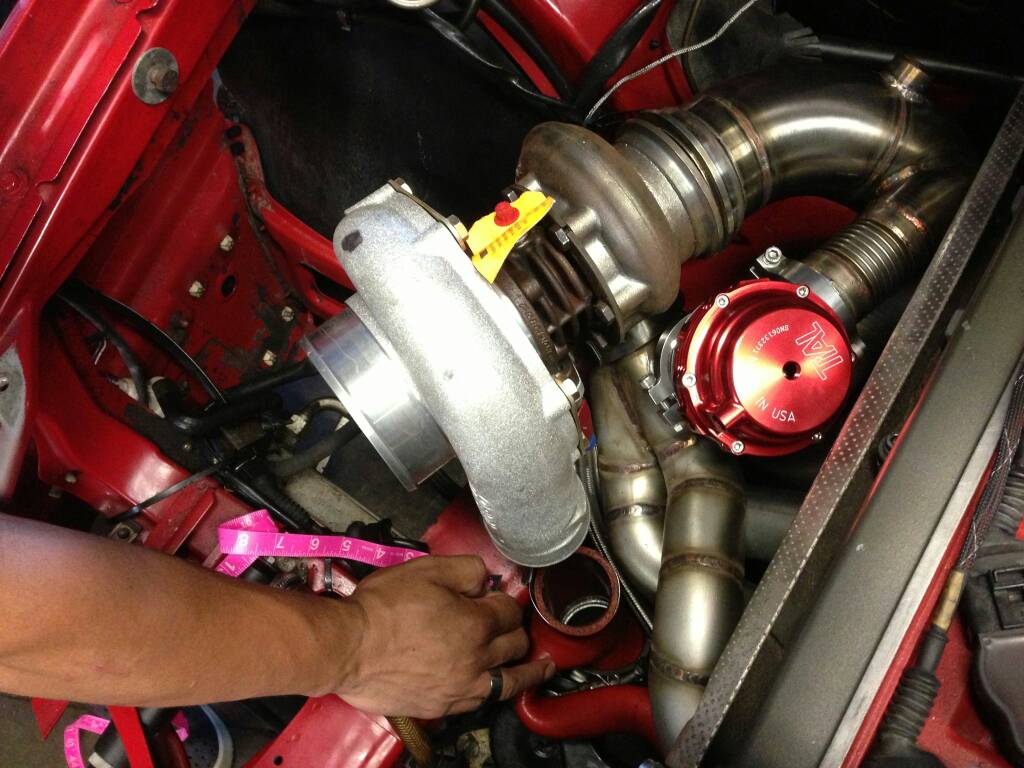

Keep rotating it around. There is a perfect spot where they will both meet up. Anything small will be taken up by the flex first time it is heat cycled with decent wastegate use. Looks great

Edit, from my point of view, looks like the turbo needs to rotate back a tad, and the flex on the coupler shows that it is not perfect too.

mushasho wrote:



Sent from my HTC One using Tapatalk 2

damn.. that be sexy.

Sent from my HTC One using Tapatalk 2

Looking good!! Like Hank said, rotate the turbo back a bit and it will mate up perfectly

EDIGREG wrote:Looking good!! Like Hank said, rotate the turbo back a bit and it will mate up perfectly

Then wastegate tube stretches... Didn't think was supposed to be that way,,.. but whatever...

She'll be sitting like this until Friday



I still need more little things...



Sent from my HTC One using Tapatalk 2

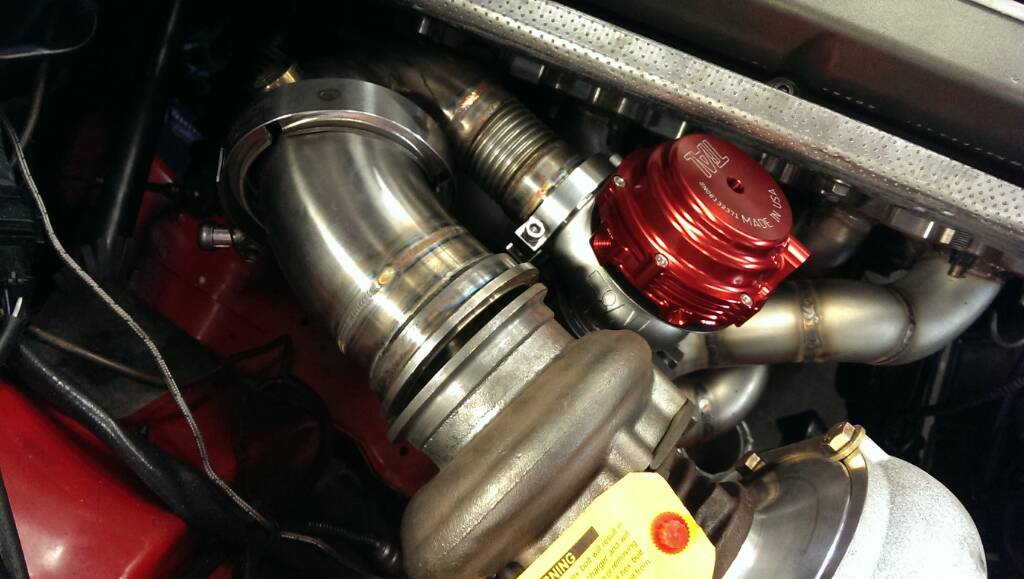

No, the wastegate should not be stretching. Look, those all will line up if you rotate the housings inlet right, and then rotate the wastegate inlet vband a little bit till teh the right combo is achieved. You will find that once you get the wastegate on, the inlet clamp will likely never come off again. I never removed mine on my car once the initial install, even though the turbos came and went, along with downpipes when I swapped transmissions.

I really don't want that wastegate stretching at all in it's natural position, and compressing is better if you need to do anything. But all those pictures I sent you, those are all without a clamp needed on the wastegate outlet, and the fitment was within 1/32nd.

Looks freaking spectacular, the engine bay looks really nice. Well done OB

OB...I concur...it you leave all clamps loose you will find the right angle for everything to fall into place. When I installed this combo in my S4 I got it right first time. It took A while on the S6A but I found it. Keep playing with it. You may find that it helps to have someone under the car playing with the end if the DP while you adjust the turbo and WG.

Hank wrote:No, the wastegate should not be stretching. Look, those all will line up if you rotate the housings inlet right, and then rotate the wastegate inlet vband a little bit till teh the right combo is achieved. You will find that once you get the wastegate on, the inlet clamp will likely never come off again. I never removed mine on my car once the initial install, even though the turbos came and went, along with downpipes when I swapped transmissions.

I really don't want that wastegate stretching at all in it's natural position, and compressing is better if you need to do anything. But all those pictures I sent you, those are all without a clamp needed on the wastegate outlet, and the fitment was within 1/32nd.

Looks freaking spectacular, the engine bay looks really nice. Well done OB

Muchas gracias... But I will give it a go in Friday again... Right now it's Moscato time...

To Do list:
1) Find the proper thread pitch of that damn V-Band clamp on the downpipe...
2) Get appropriate adapter for turbo oil feed restrictor to -4an
3) Complete that other side of oil feed line that goes to the oil filter housing with the correct -4an flange (was running -3an before)
4) Cut oil dump line to the desired length and complete that end (turbo oil dump is already completed)
5) Figure out what the hell I'm gonna do with my existing Samco hose under the compressor. Extending the intercooler piping to raise the Samco's position higher does not look like it'll line up(for obvious reasons, ie, better turbo placement)... Going solid isn't feasible right now...
6) Grab a 12mm on a swivel and tighten up the lower Exhaust Manifold nuts
7) Hook up wastegate
8) Fresh Fluids and Break in

Later on:
9) Swap in new fuel filter
10) Swap in 450lph fuel pump
11) Get adaptors for Setrab oil cooler
12) Wrap that Downpipe
13) Heat Shield the turbo & Duct that oil cooler for fresh air
14) Hook up h2o/meth pump

Later Later On:
15) Finish the R&R of all bushings on the subframe
16) Complete the custom Coil Over Program
17) Interior Headliner & Sunroof control panel
18) 2watt dash bulbs
19) Get my Audio finalized

Ahhh and sell some stuff:
RS2 Manifold
Euro A6 real lights complete with center panel
Stromung 3" Downpipe
K26/t04e Turbo...

This cheap wine has me typing a lot...



Sent from my HTC One using Tapatalk 2

mushasho wrote:This cheap, girly wine has me typing a lot...

FTFY

loxxrider wrote:

mushasho wrote:This cheap, girly wine has me typing a lot...

FTFY

Thanks for the fix!!! What was I thinking...

Sent from my HTC One using Tapatalk 2

mushasho wrote:To Do list:
1) stuff

Later on:
9) more stuff

Later Later On:
15) more more stuff

yeah brah - that''s exactly the list I was tellin ya ta make. shift the non-essentials down the list, especially anything where ease of implementation isn't affected by the current state of teardown (aka yer oil cooler setup you can do at any time w/ little penalty).

Quattro-JC wrote:

mushasho wrote:To Do list:
1) stuff

Later on:
9) more stuff

Later Later On:
15) more more stuff

yeah brah - that''s exactly the list I was tellin ya ta make. shift the non-essentials down the list, especially anything where ease of implementation isn't affected by the current state of teardown (aka yer oil cooler setup you can do at any time w/ little penalty).

wow booz doesn't affect your train of thought... Actually just trims down the level of deushe in ya... Good combo... :grin:

Did you read the list? Or is this just an "I told you soo" typical post... ;-)


PS, I carry that jack rubber piece in my car for whenever you're back around these parts...


Sent from my HTC One using Tapatalk 2

huhwut? no that was meant to be a 'way to go that's just what I was talkin about' cheerful post.

people's all cranky for it bein a holiday and great weather and all... wtf!? too much alcohol? or not enough?

Quattro-JC wrote:huhwut? no that was meant to be a 'way to go that's just what I was talkin about' cheerful post.

people's all cranky for it bein a holiday and great weather and all... wtf!? too much alcohol? or not enough?

No cranks has me cranky, I guess.... want it done already... sorry

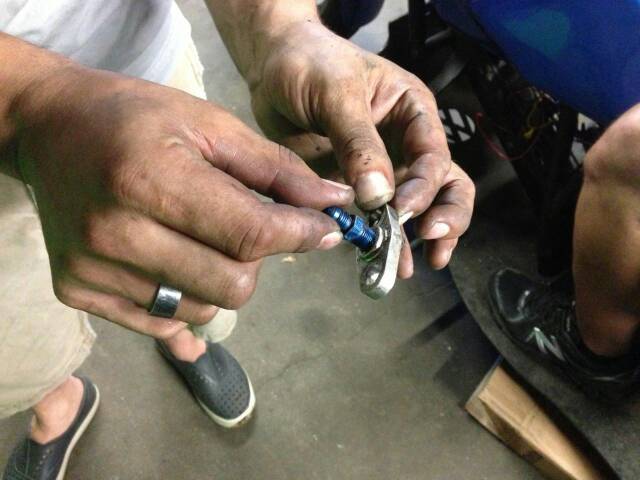

Gotta find a -4an fitting to reuse the existing flange....

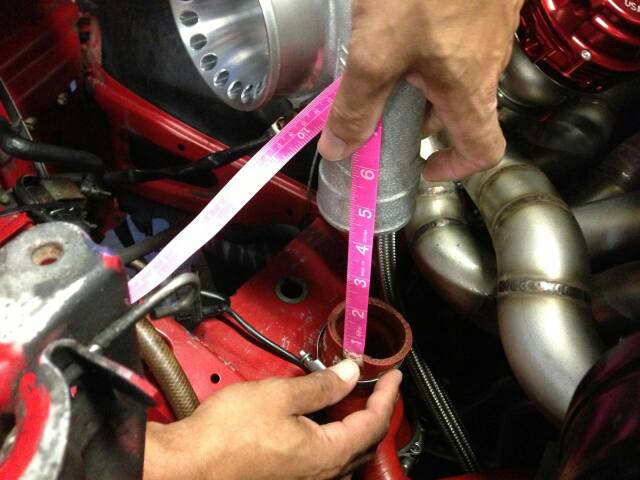

Few inches off...



I'll have a cheap mild steel/silicone coupler fix in there in the meantime...




Sent from my HTC One using Tapatalk 2

Which intercooler are you running? I could make up a copy of my charge pipe for you. It allows use if the stock oil cooler, a compressor inlet pipe, and the Apikol FMIC with Hanks header

roortube wrote:Which intercooler are you running? I could make up a copy of my charge pipe for you. It allows use if the stock oil cooler, a compressor inlet pipe, and the Apikol FMIC with Hanks header

I didn't have Apikol money at the time so I used the Garrett 600 intercooler with custom piping... A carbon copy of yours would be really cool if only I could see a pic of what it looks like & how it was routed...

Sent from my HTC One using Tapatalk 2

To think an owner of a stanced out Vert m3 would be so kind to help ID my 180° out of time issue... Man how times have changed...
Mood: Grateful

Marc & Ed, thanks for the 1st & 2nd opinion on this as well...

Moving things around now as I type...



Sent from my HTC One using Tapatalk 2

JC to the rescue?

OB is this amateur hour - you need a man in sandals to slowly tell you you're completely backwards.

Looking good

lol

themagellan wrote:OB is this amateur hour - you need a man in sandals to slowly tell you you're completely backwards.

Looking good

LOL. pretty close. Sanuks FTW brah. Next time I'll roll up in black socks & shorts like Obers is sportin tho. I stand out enough when I'm hangin in Lawrence, at least maybe I can get the dress code down.
