MORE!
Nothing too interesting here other than im running a ’91 200 20vtq brake master cylinder. The port arrangement is a bit different than the 4kq, but as I was making all new lines, it was a non-issue.
Pics!

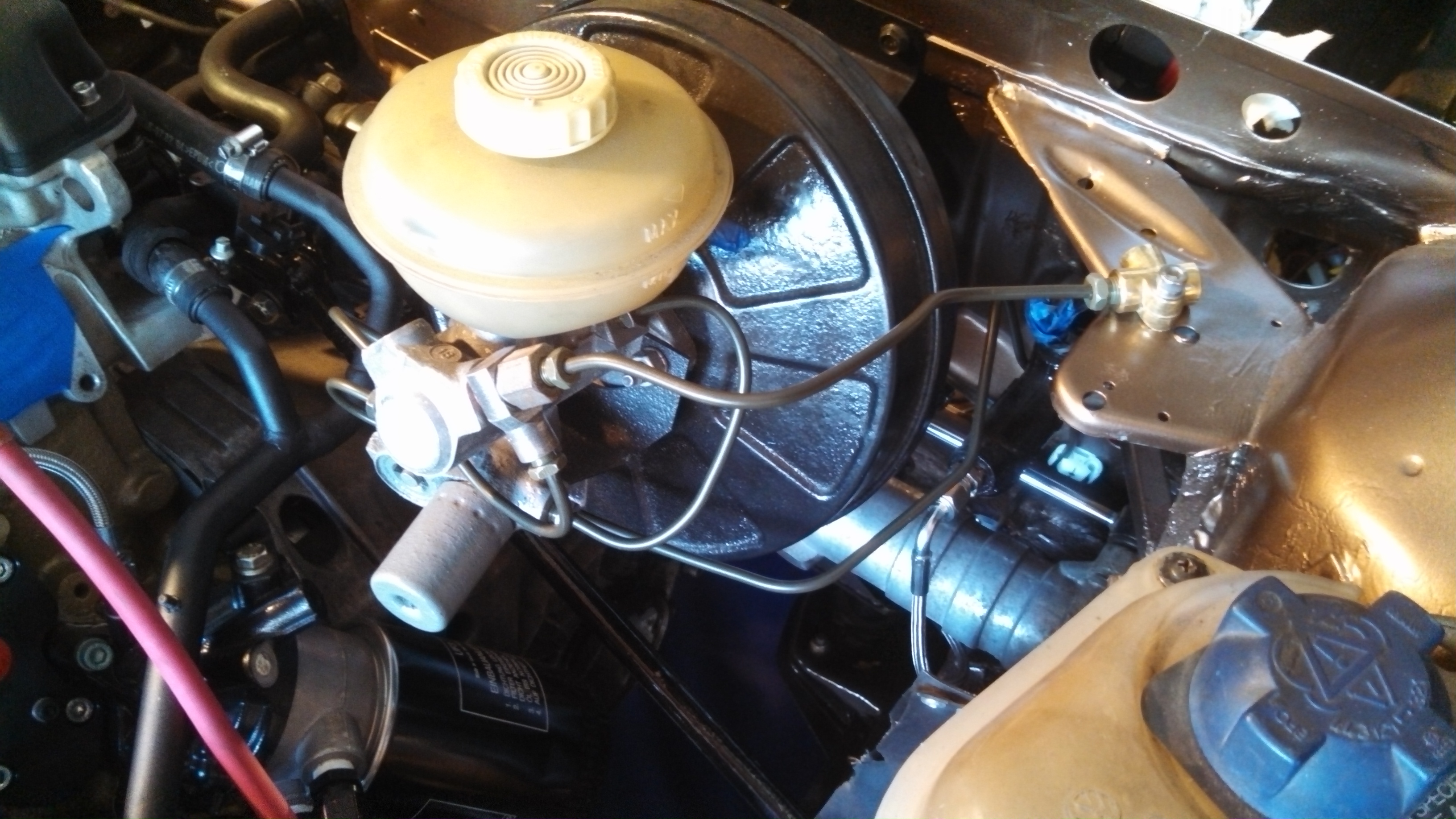

- plumbing new brake lines.jpg (1.37 MiB) Viewed 28726 times

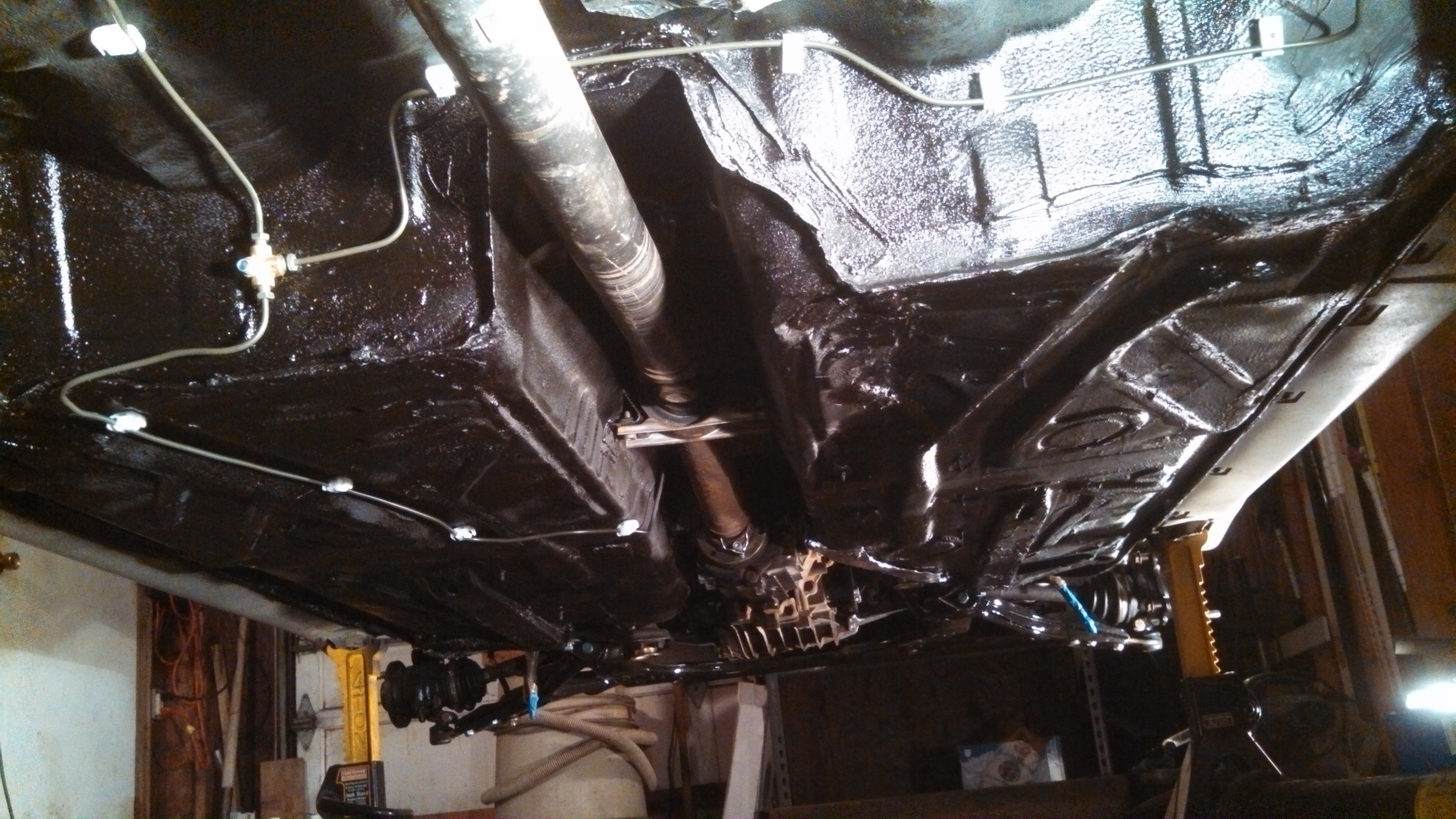

- handbrake hardline to new T and ind. rears.jpg (1.75 MiB) Viewed 28726 times

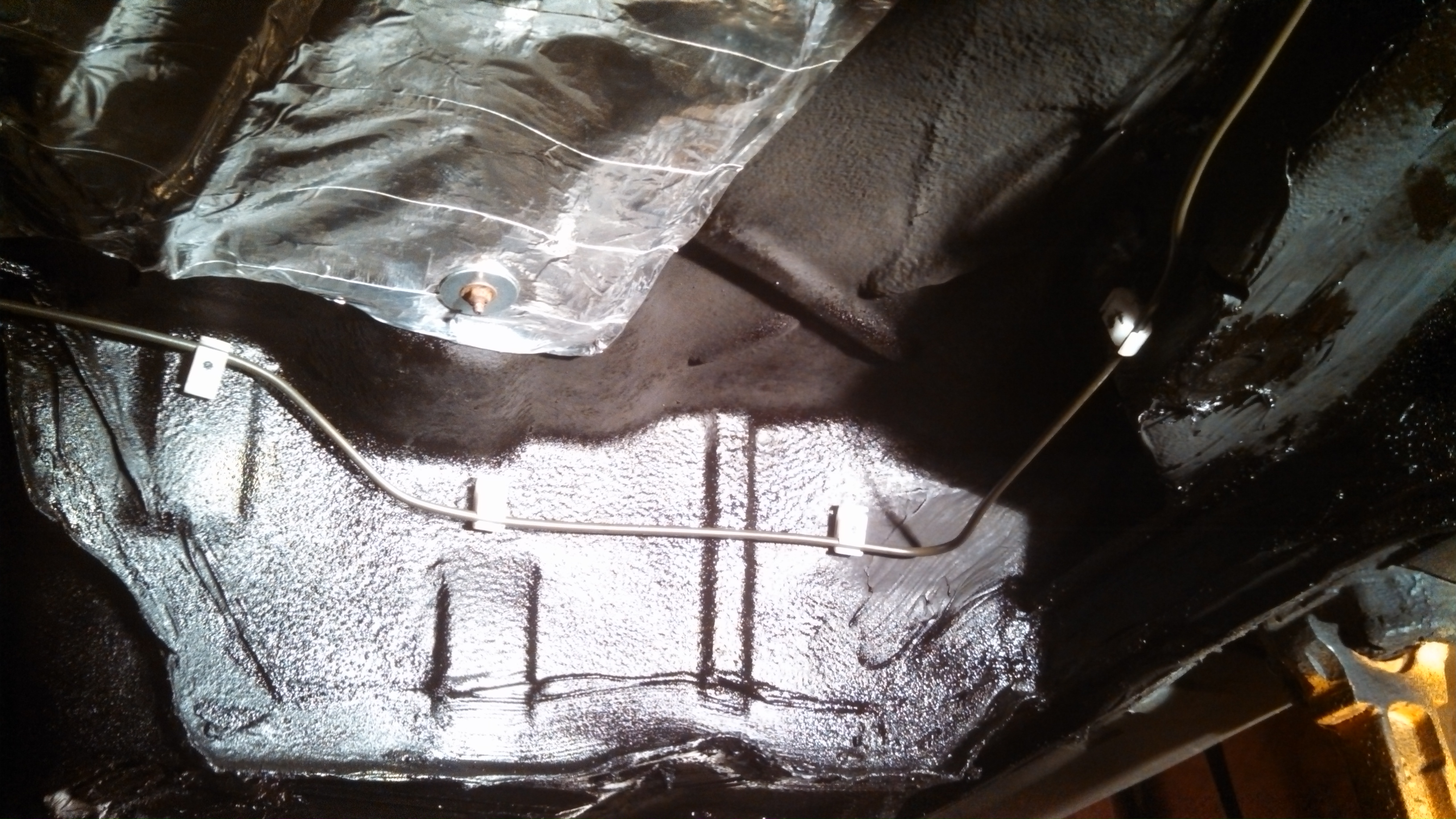

- new rear pass. hardline.jpg (1.7 MiB) Viewed 28726 times
Note: the hardline coming down and out of the trans tunnel. That’s from the hydraulic handbrake mounted near the shifter!!!
All the rear lines are done, flared, attached and with new clips and softlines! Wooot!

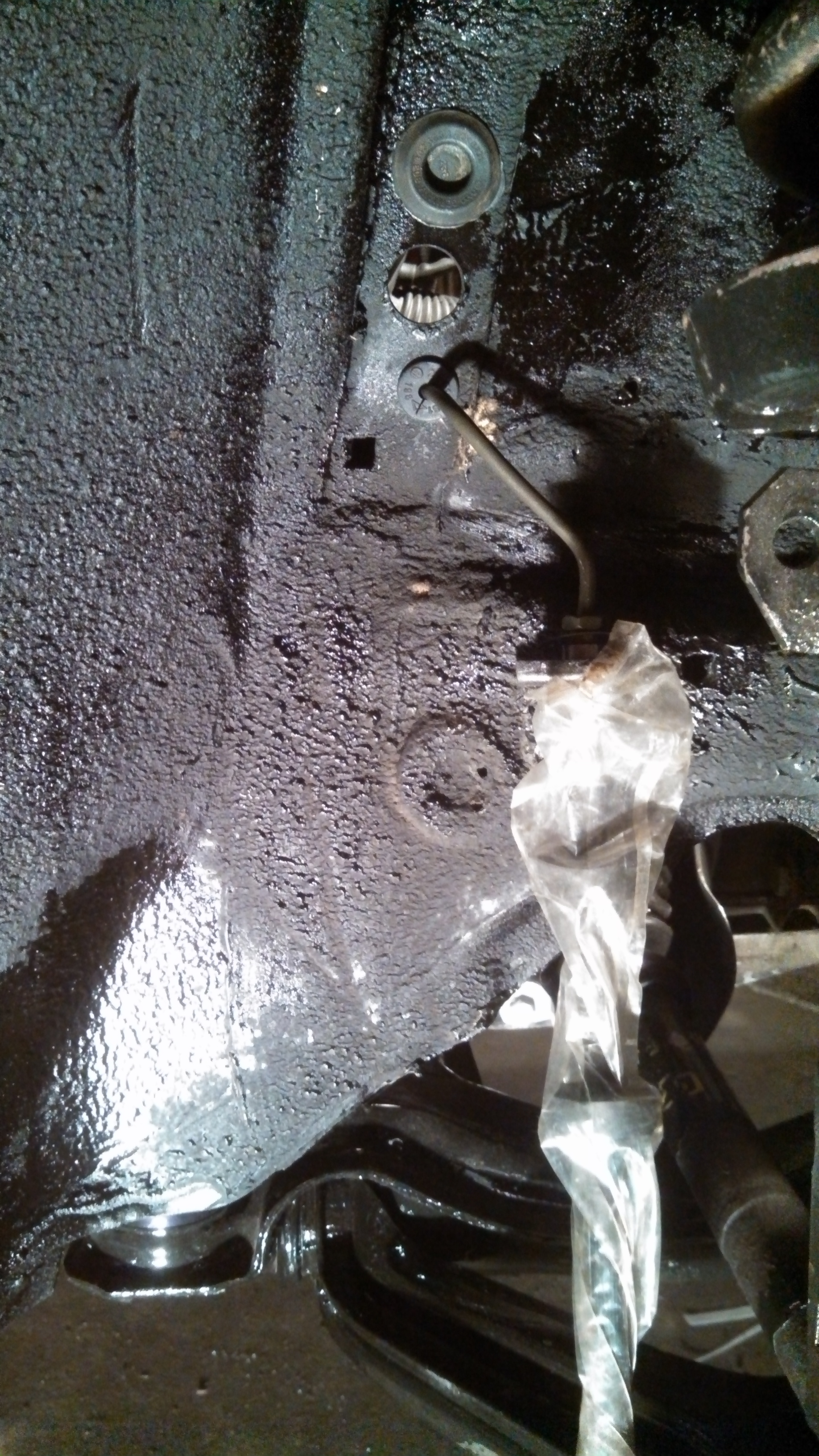

- all new hard and softlines with clips.jpg (1.92 MiB) Viewed 28726 times

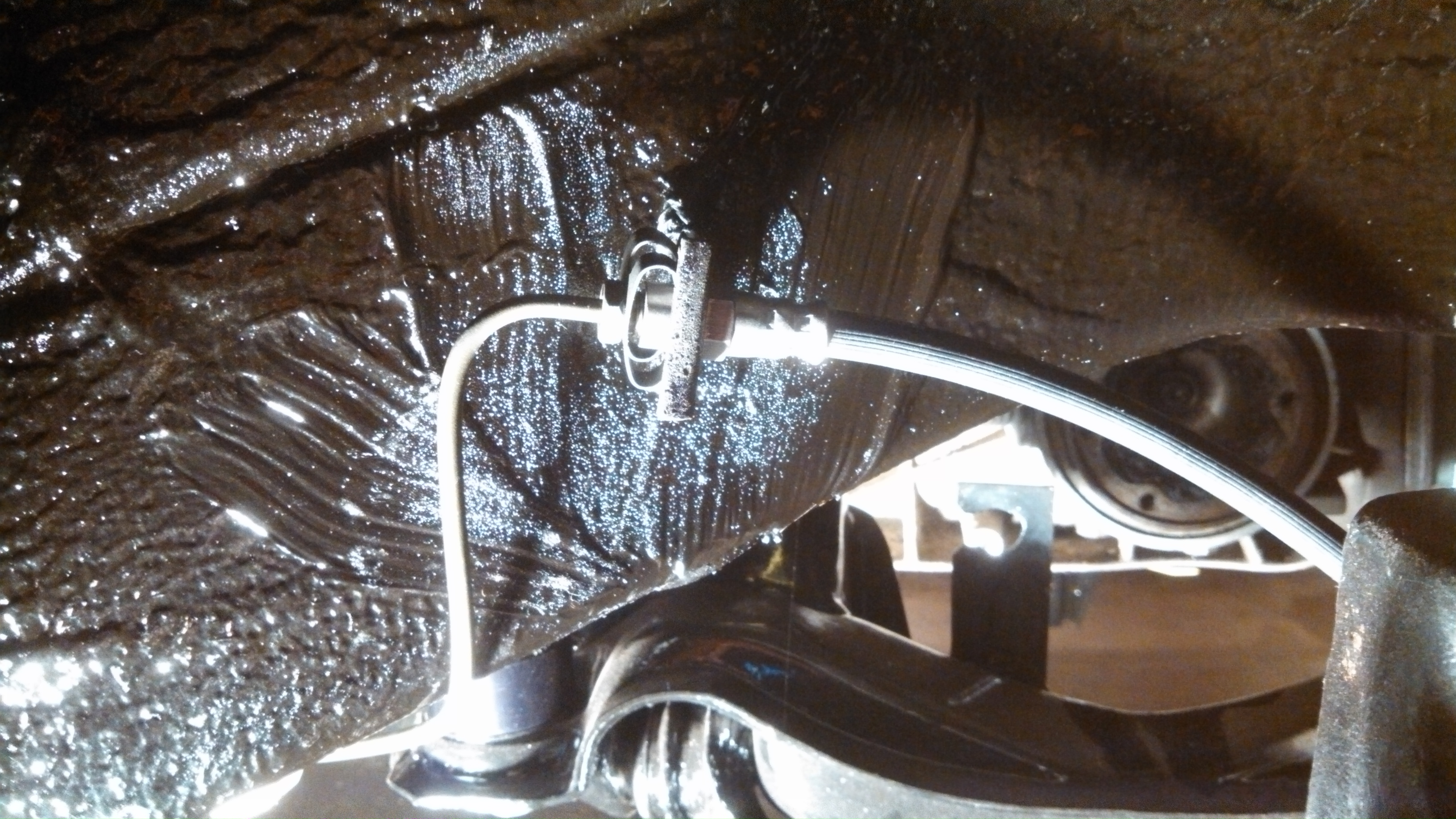

- all new hard and softlines with clips2.jpg (1.8 MiB) Viewed 28726 times
Re: Tim's '86 BLAZE 4kq uploading pics +update
Posted: Sun Aug 18, 2013 12:27 pm
by my2000apb
MORE!!
Here is the hydraulic Comp-Brake vertical handbrake inplace with the b5 s4 shifter box. It’s nice and close to the steering wheel and shifter.

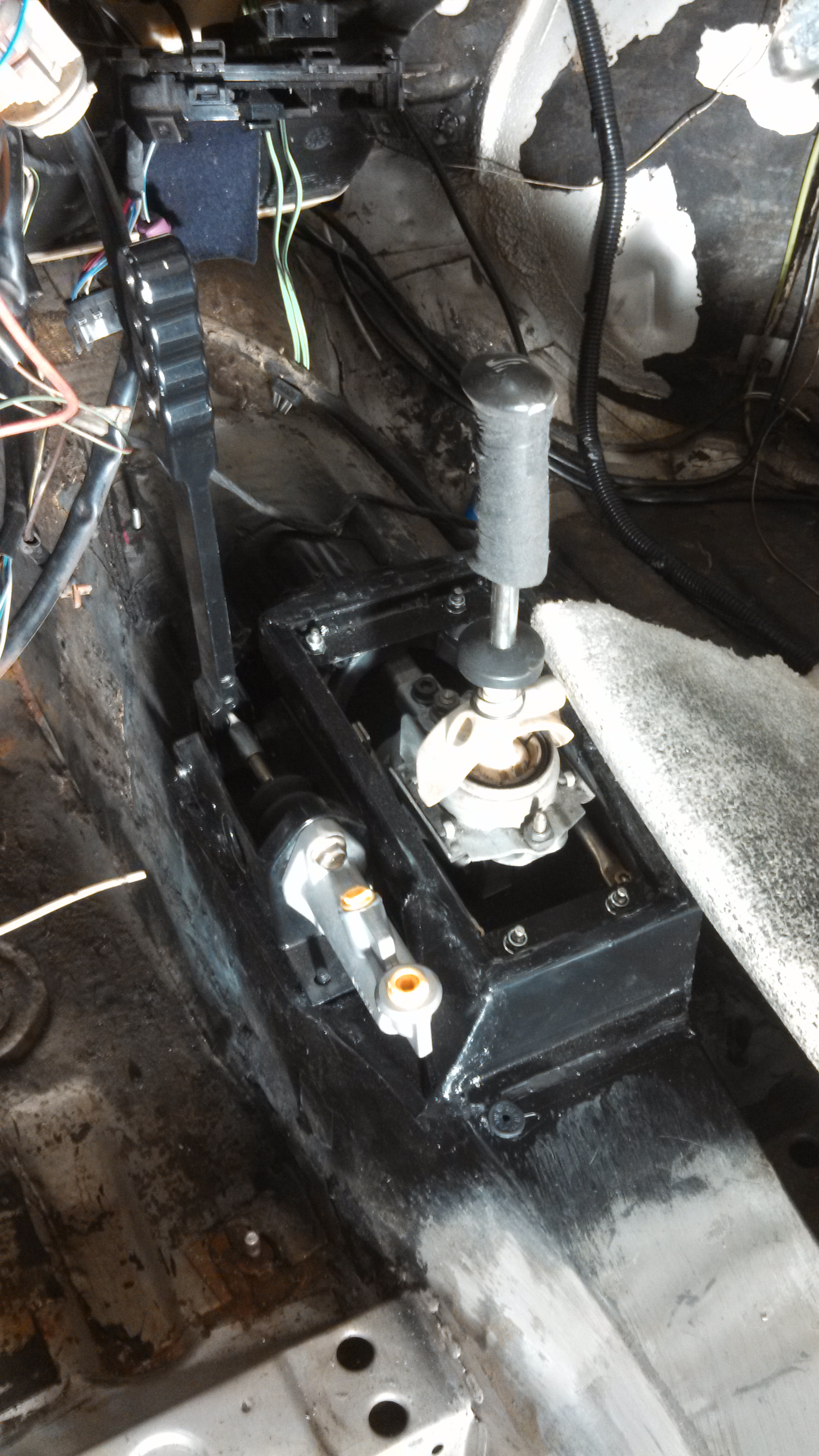

- handbrake and new shifter.jpg (1.63 MiB) Viewed 28726 times

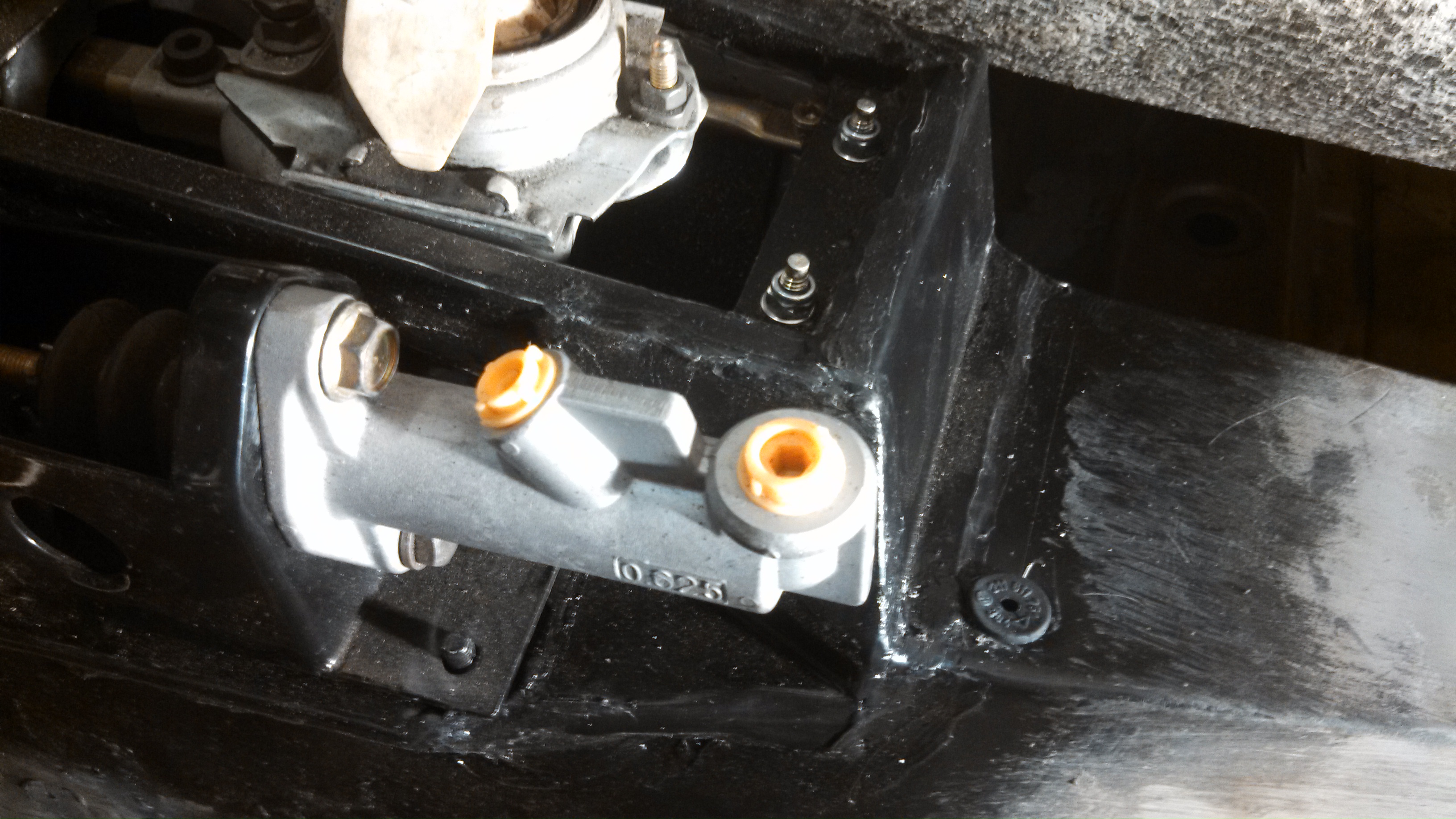

- handbrake mounted next to new shifter.jpg (1.49 MiB) Viewed 28726 times
Hardlines coming through firewall and rearward on trans. tunnel

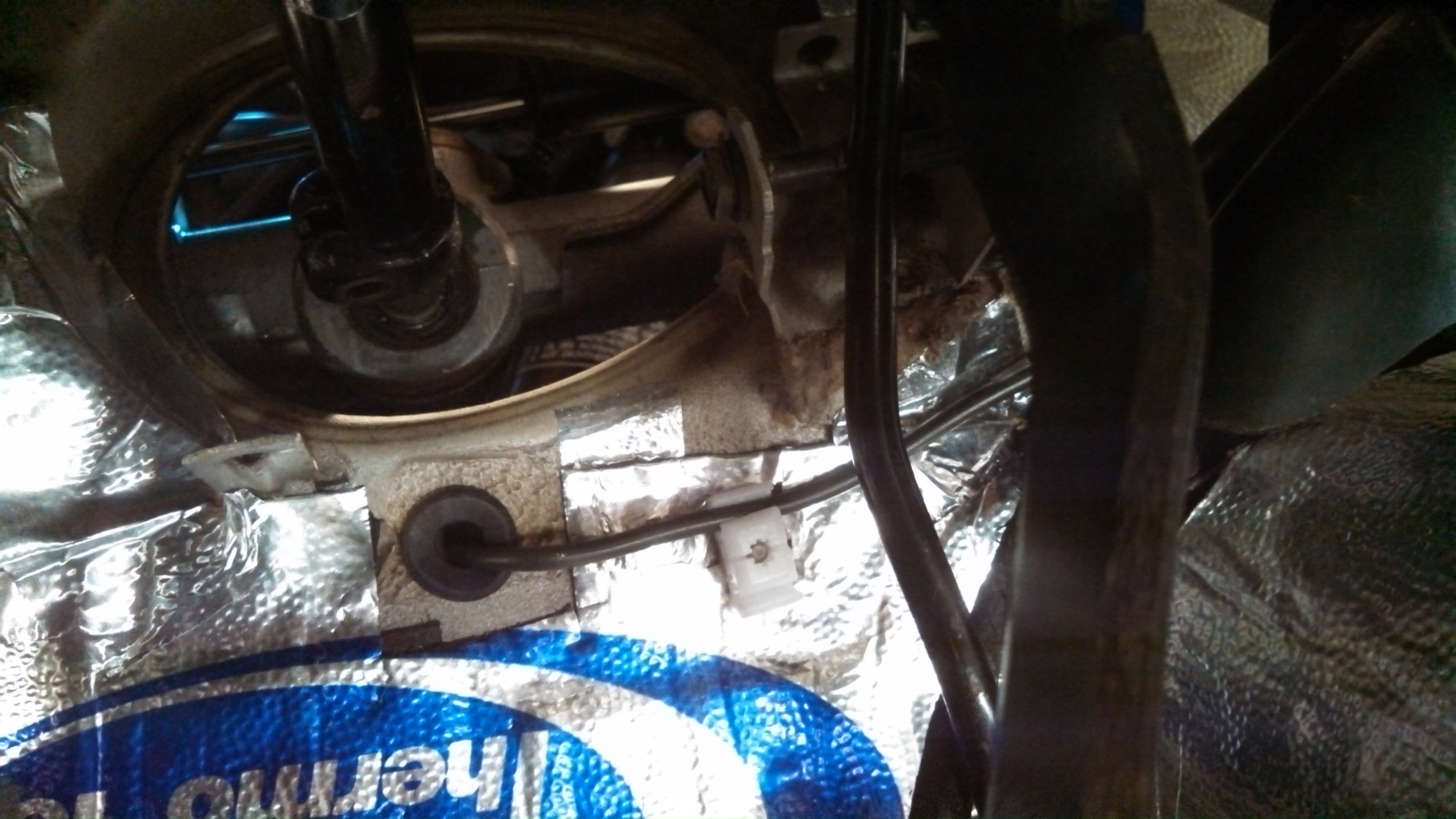

- handbrake hardline from MC.jpg (1.23 MiB) Viewed 28726 times

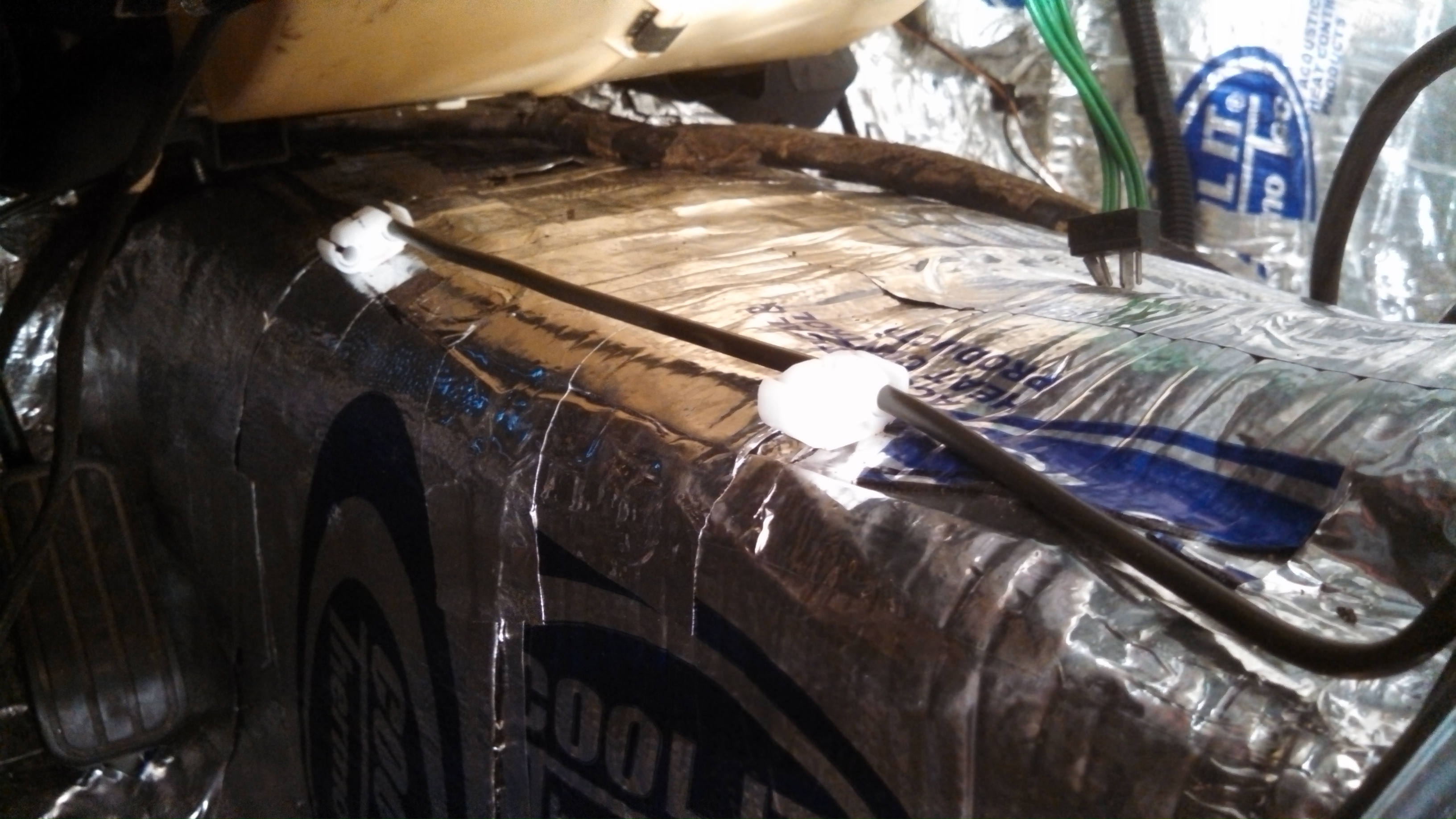

- handbrake hardline from MC along tunnel.jpg (1.31 MiB) Viewed 28726 times
Re: Tim's '86 BLAZE 4kq uploading pics +update
Posted: Sun Aug 18, 2013 12:37 pm
by my2000apb
MORE!!
Fenders got their major dose of bondo smoothing, I just need to do one more skim on a few spots and they will be ready for paint!

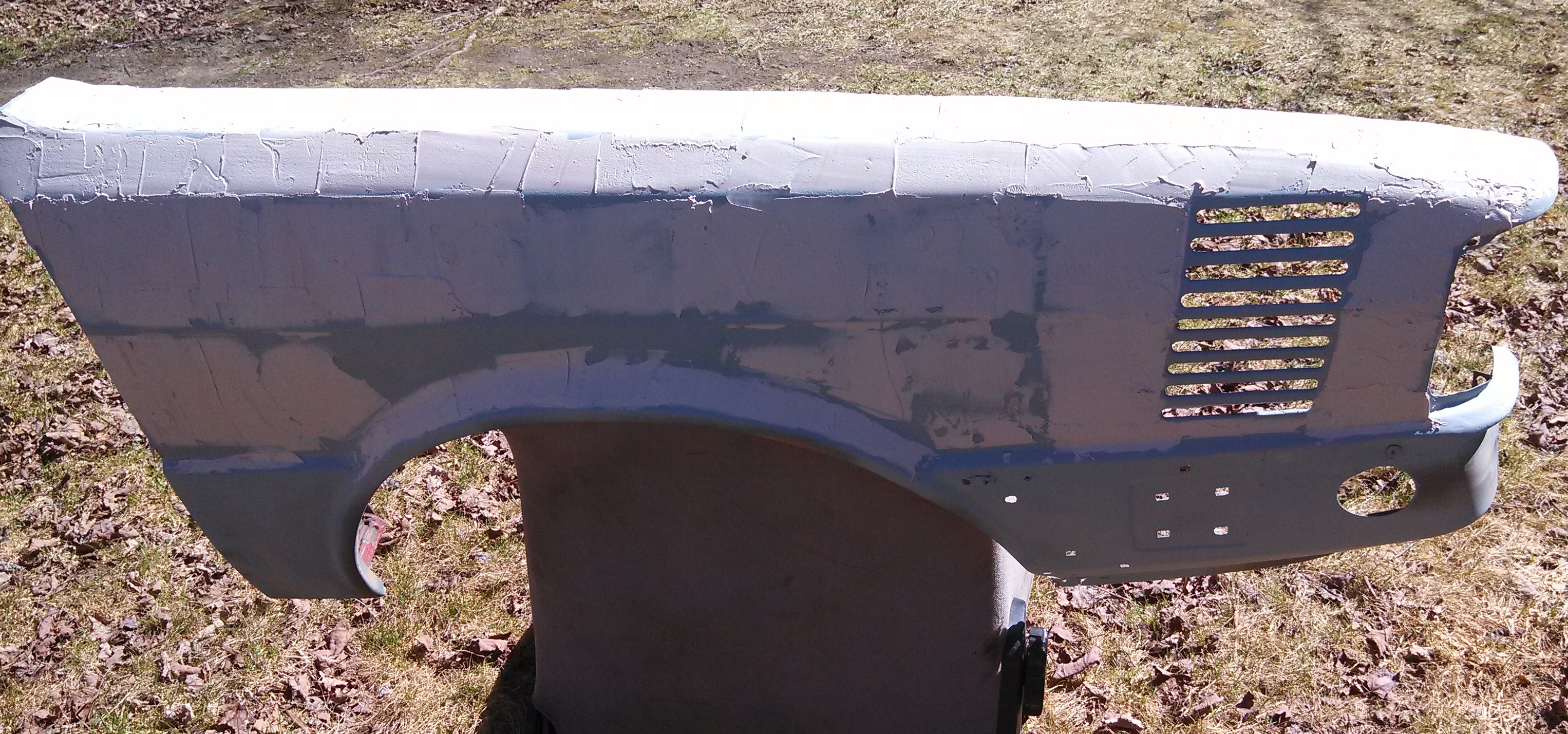

- more bondoage.jpg (1.72 MiB) Viewed 28725 times

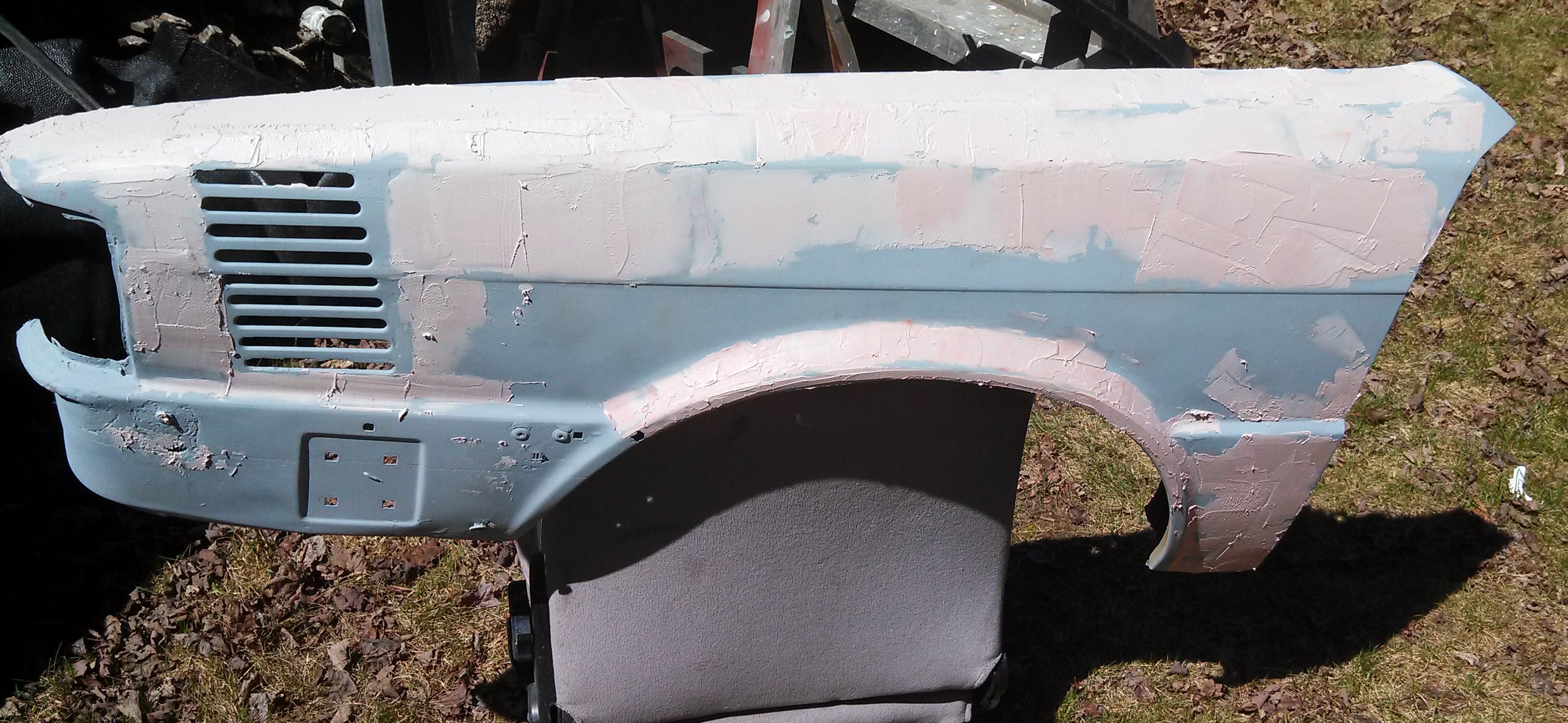

- more bondoage 2.jpg (1.35 MiB) Viewed 28725 times
Re: Tim's '86 BLAZE 4kq uploading pics +update
Posted: Sun Aug 18, 2013 12:42 pm
by my2000apb
Re: Tim's '86 BLAZE 4kq uploading pics +update
Posted: Sun Aug 18, 2013 1:00 pm
by my2000apb
UPDATE!!!
Getting down to the wire! Haha pun
There’s not too much left, wiring, driveshaft install, rework the undertray a little bit, etc
Wiring to go through, ugh

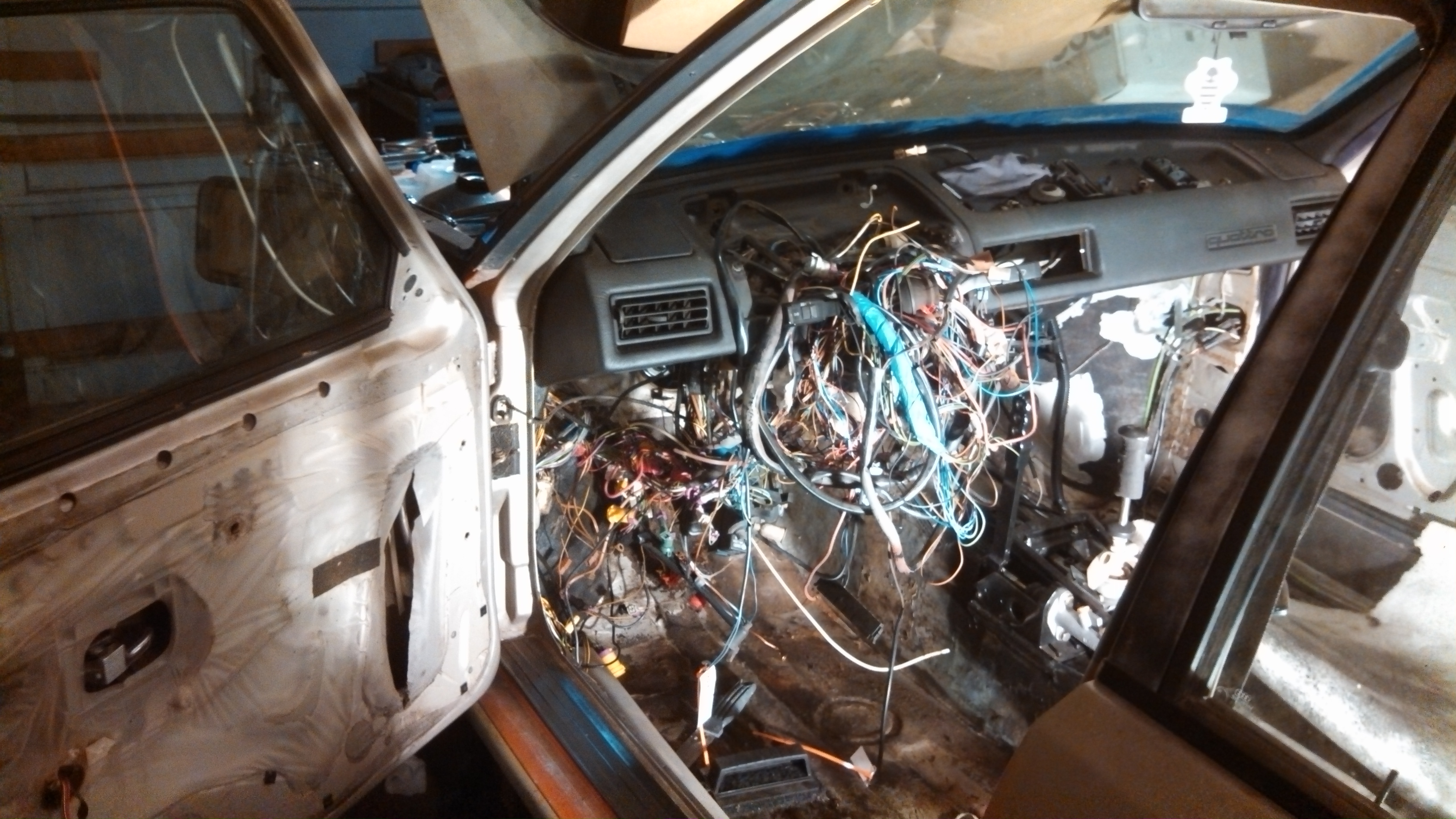

- wiring to sort through.jpg (1.61 MiB) Viewed 28724 times
Time to take a break from mechanicals and get it to paint!!!
Here’s a pic of the engine bay just prior to wrapping it all up

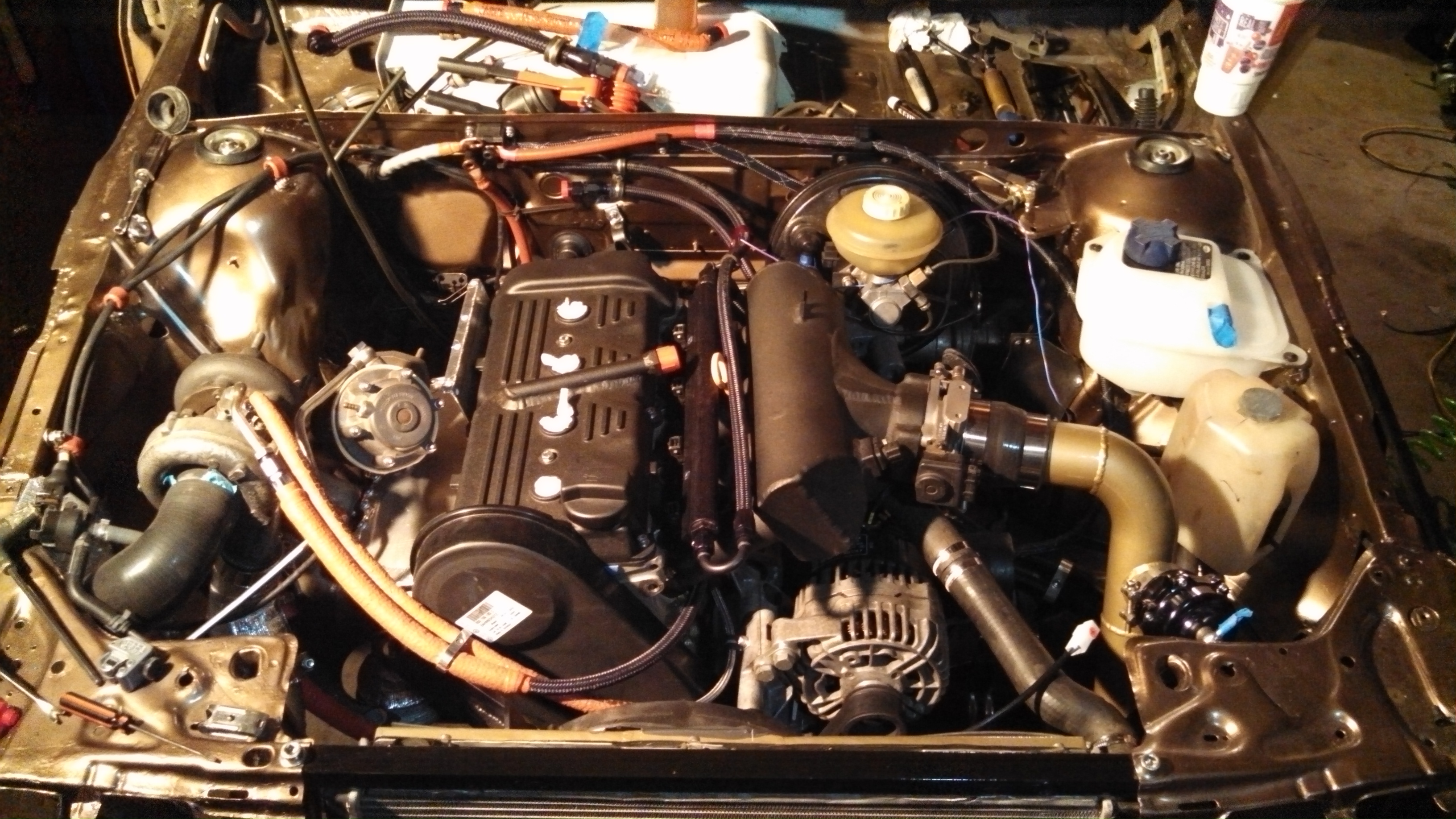

- most recent bay shot.jpg (1.73 MiB) Viewed 28724 times
All taped off awaiting paint.

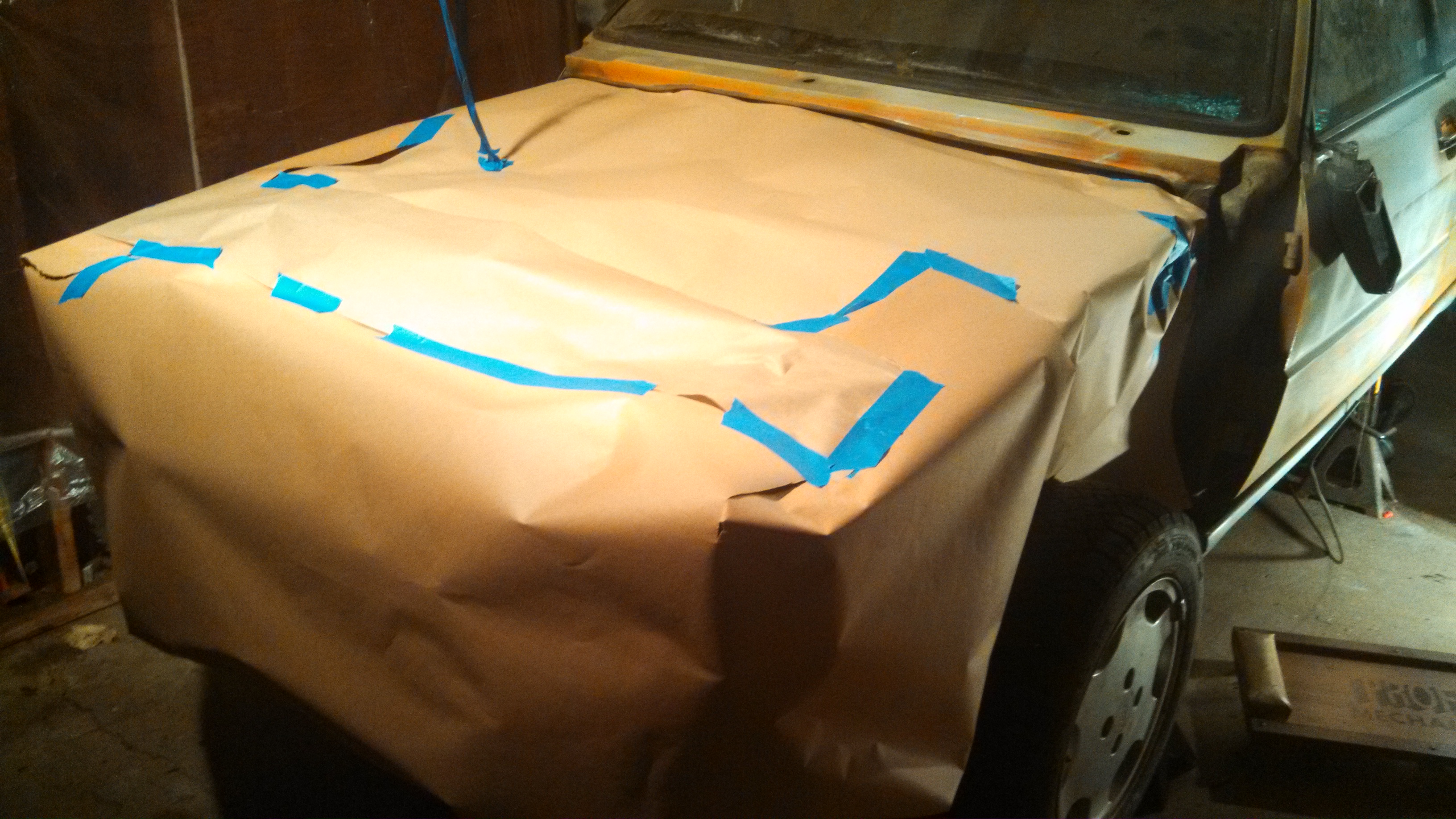

- engine bay all sealed up for paint protection.jpg (1.81 MiB) Viewed 28724 times
- paint prep.jpg (1.15 MiB) Viewed 28724 times
Garage prepped for sanding, sanding, sanding then PAINT!!!!

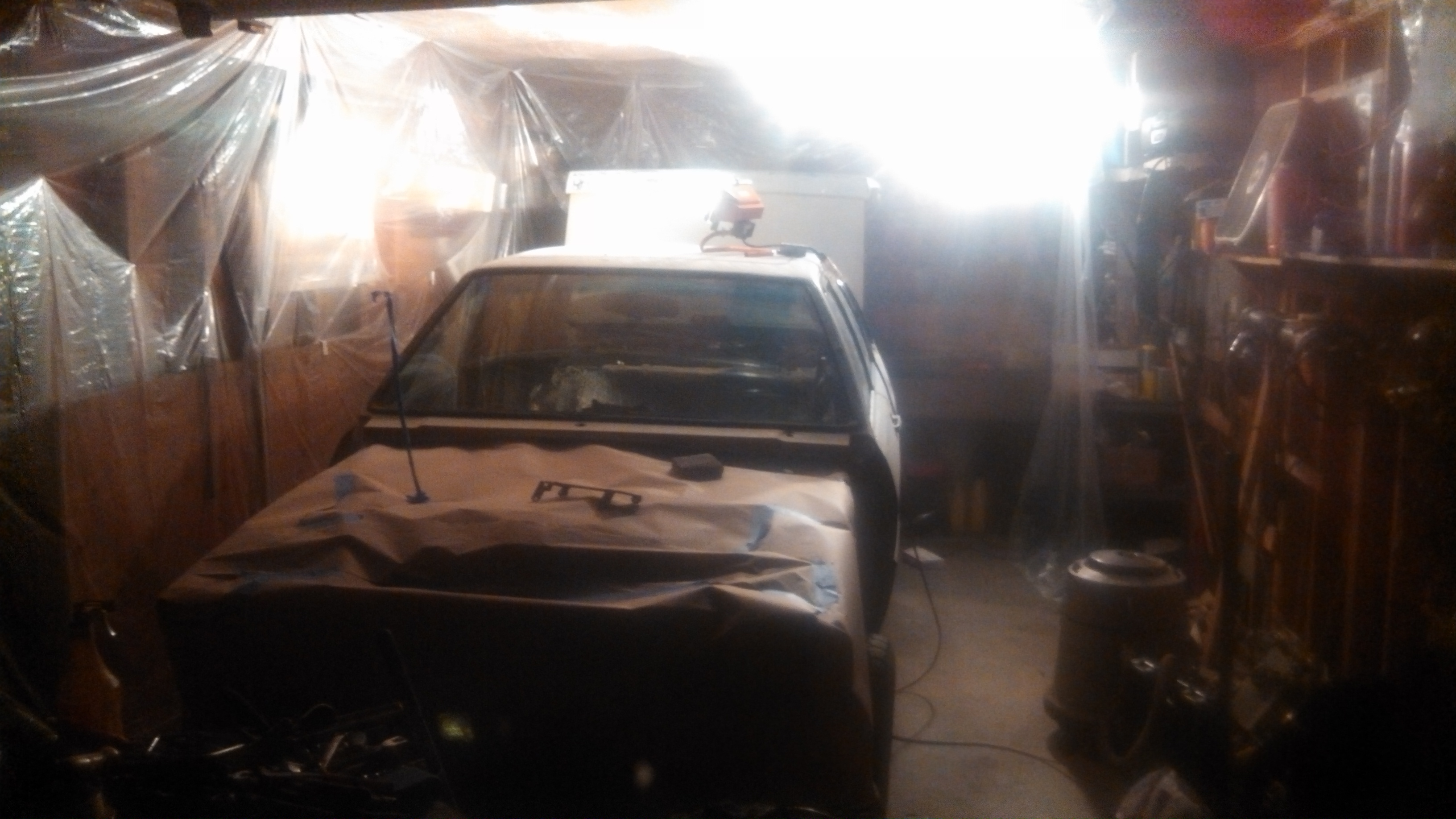

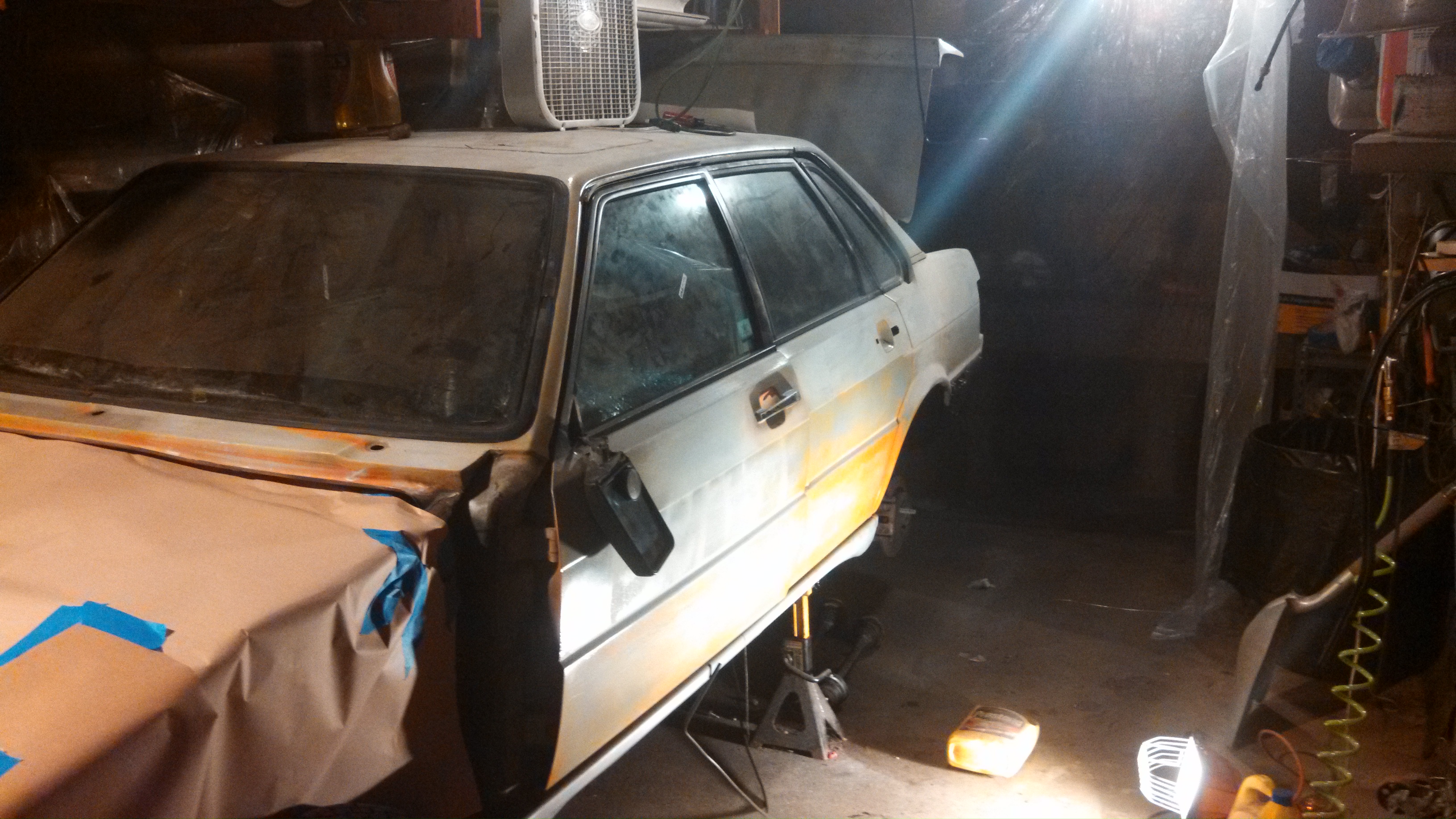

- needs paint.jpg (1.85 MiB) Viewed 28724 times
That’s all and caught up for now! Time to get back to work!!!
